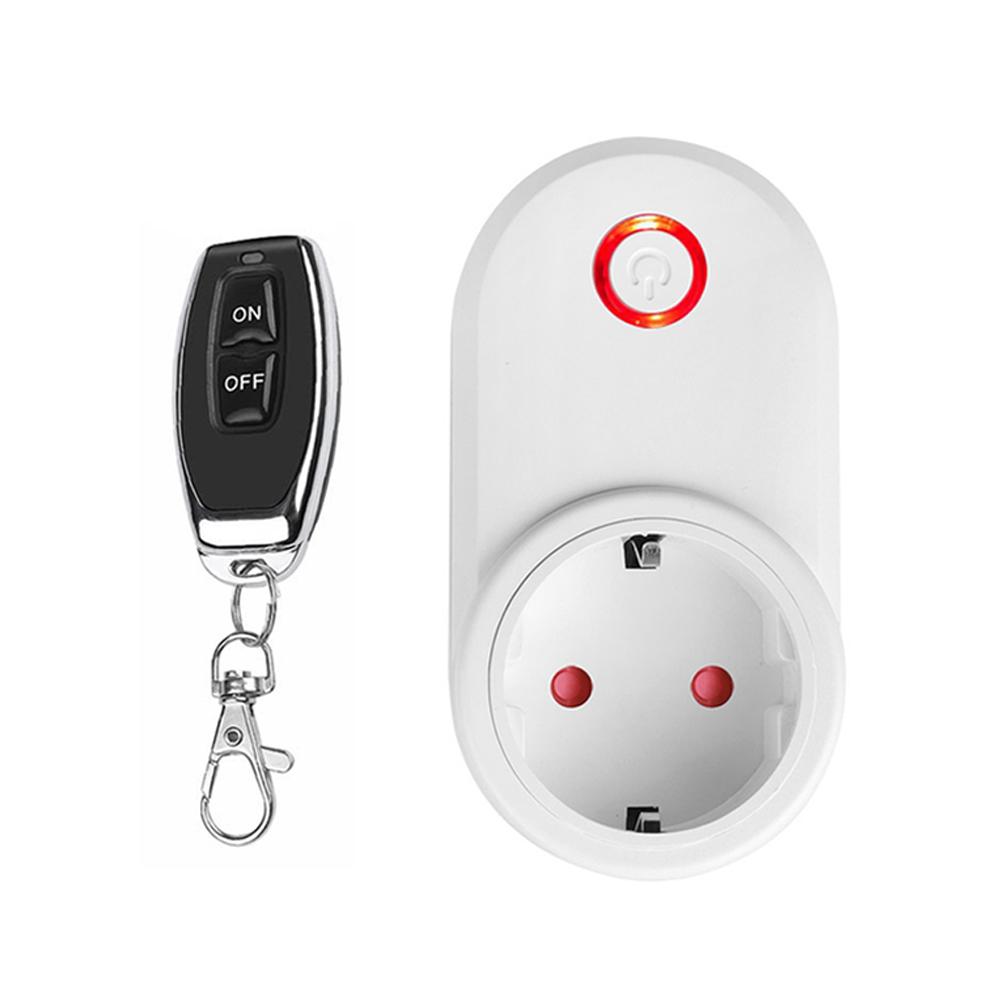

433Mhz Wireless Remote Control Switch AC220V 15A EU FR Standard Socket Electric Plug Electrical Outlets For Smart Home Light
Use:
Press *ON* button -> The Home Appliances OR Light will turn ON;
Press *OFF* button ->The Home Appliances OR Light will turn OFF.
FUNCTION
1. Manual control: press the socket button to open/close
2. Pairing the new remote control: 1): Long press the socket button for3s and after the Led lights up then release it. 2): Press the new remote control button , the LED flashes 3 time-
sand turns off. The pairing new remote control is successful.
3. Delete the remote control: Press and hold the socket button for 8s . The LED turns from on to off, and flashes 3 times. Releasing the remote control successfully. The paired remote controls are all deleted.
Relay Receiver Board Parameter:
Working Voltage : AC 85~265V
Max current : 15A
Load Current : 3000W
Remote Control Battery : 2*CR2016(Include)
RF frequency : 433MHz
Working temperature : -30~+80 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 25 pieces
Support encoding :1527 Leaning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 50 meters
Remote operating mode : Toggle Mode/Latched Mode
Setting:
1. According to the picture above,Press and hold the learning button until the indicator flashing twice.
2. Press the *ON* button, the indicator flashing twice.
3. Press the *OFF* button, the indicator flashing twice.
4. Success.
How to clear the signal:
Only one step: Press and hold the learning button until the indicator flashing8 Times(about 7 seconds ).
Package includes:
1x Smart Socket Switch
1x Remote Control
or
Package includes:
1x Smart Socket Switch
Specifications:
Application 1:
Family, Farm, Factory, Office, Supermarket
Application 2:
Led Light Lamp Bulb Switch, Home Security Alarm System
Application 3:
For Kitchen Food Garbage Disposal Waste Grinder
Features 1:
House Power Outlet Light Switch Socket
Features 2:
433MHZ RF Remote Control Switch Socket
Features 3:
Multi-purpose Remote Control Switch Socket
Features 4:
Universal Plug With Electrical Outlets Remote On Off For Light
Features 5:
Remote Control Socket EU 433Mhz For Smart Home
Features 6:
ON OFF 2 Buttons Remote Control
Features 7:
EU Socket With Remote Controller
