The QY3225 25KG digital servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness. With high quality and performance, it is tailored for RC hobbyists to provide different experiences and delight.
Features:
Large torque - maximum torque can up to 25kg.cm (6.8V)
High-precision metal gear with hard anodizing for better accuracy and longer service life
CNC aluminum middle shell enhances heat dissipation and ensures the servo motor can work well
Waterproof rubber seals screws, made of first-grade material ensure the longevity of the products
Good performance digital standard servo, which can be common use for robots, mechanical arms, climbing cars and remote control toys
Great choice for university professors and students who are interested in developing software for robot parts
Tailored for RC hobbyist to provide different experience and delight
Specifications:
Item: QY3225 Digital Servo
Operating voltage: 4.8 - 7.4V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Dead band: 3μs
Working frequency: 50-333Hz
Operating Angle: 180°
Connector wire: About 300mm
Gear type: Metal
Motor Type: DC motor
Size: 40 * 20 * 40.5mm
Weight: 67g
Note: There could be some deviations due to manual measurement or slight color difference as the result of shooting scene
Package information:
Package size: 10 * 7.5 * 2cm / 4 * 3 * 0.78in
Package weight: 73g
Poly Bag package

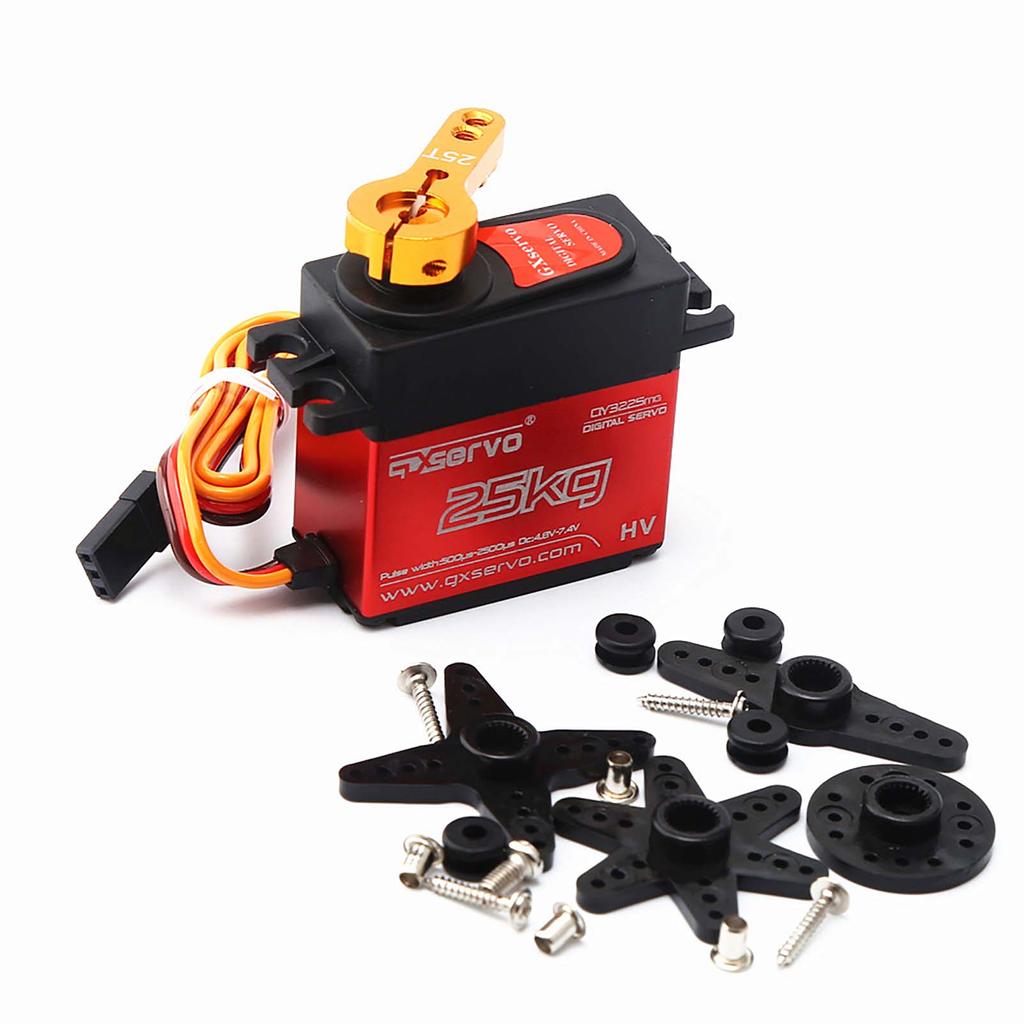

Package list:
1 * QY3225 25kg Digital Servo
1 * 25T Adjustable Metal Servo Arm
