Note: The meter has been calibrated. If there is no 12V power supply, do not enter the 5 mode!! Just cut it quickly.
Entering the 5 mode will refresh and reset, and it needs a 12V power supply to calibrate.
1. Product parameters;
1. Voltage measurement range; DC8V-100V 2. Working current; ﹤15MA
3. Display mode; LCD screen 4. Display color; blue and white
2. Main indicators
1. Measurement accuracy: 1% ± 1 word. 2. Display: LCD liquid crystal screen
3. Measuring speed: about 2 times per second. 4. Dimensions: 61*33*14.5
3. Product Description
1. The ternary lithium battery L measurement ranges from L02 to 25 strings. Power off memory.
2. Lead-acid battery P measurement can be from DC12V to 24V, 36V, 48V, 60V, 72V, 84V. Power off memory.
3. The iron-lithium battery pack F can measure from F03 to 26 strings. Power off memory.
4. Product parameter setting
5. Long press the upper key to enter the mode selection
six,
1 mode battery type setting: (battery does not know the number of strings can use 3 mode, set high and low voltage)
Power on the LCD display and work, now you can set the type of battery you need to measure. Long press the button in the upper right corner of the screen and the display will show 1－－,
Press the up key to switch modes 2--, 3--, 4--.
Press the key, it will display 1--L, at this time, press the upper key to select L, P, F and so on for the battery type.
Press the key again, the display shows 1--L02. At this time, you can press the up key to set the parameter to be measured, and press once to increase the value.
Ternary lithium battery pack L, press to add one string at a time, you can measure L02 strings to 25 strings.
Iron-lithium battery pack F, press to add one string at a time, you can measure F03 strings to 26 strings.
Lead-acid battery: P, increase 12V by one time, the measurement can be from DC12V to 24V, 36V, 48V, 60V, 72V, 84V.
After setting the battery parameters, press the key to confirm the save (the value will flash if the value is not saved). The display shows 1 - -, and the set number of strings, (after saving, the value on the display will not flash,) and then long press the button on the upper right corner to return.

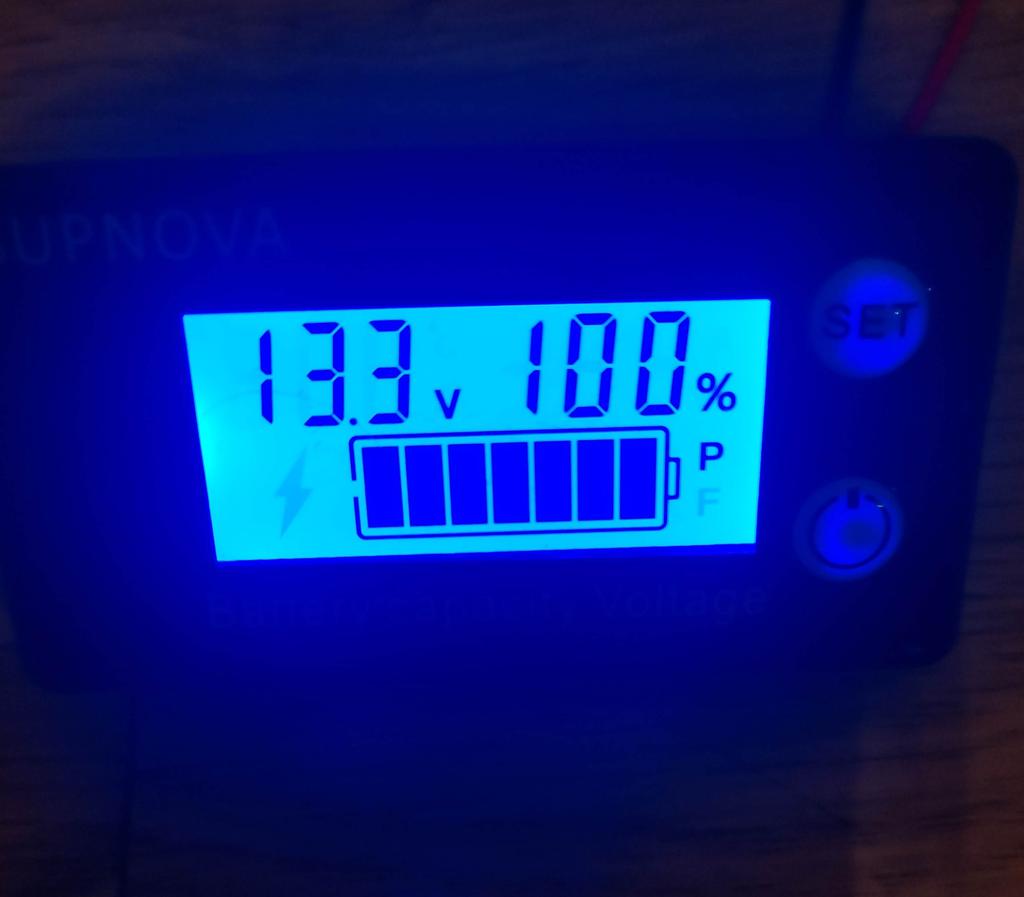

The display shows the parameter you set the value for. Display voltage, power, battery grid.
Note: If the battery type of mode 1 is not set, only the voltage of the meter head will change when the battery is in use, and the power will always be full!
1, 2 mode timing time setting: 2 - display, then press the lower right corner key to display ON 00, OF/ON flashes. After setting the timing time, press the up key to confirm and save.
Set the start switch OF/ON on the left, and set the timing time on the right (can be set to 10 seconds, 30 seconds, 60 seconds, 120 seconds)
In this mode, the function of the down key is to go to the left →, and the function of the up key is to increase +
2, 3 mode high and low voltage settings 3——, display 00.0 000, (the second decimal point is not displayed, but it exists)
The left side is the lowest voltage (this voltage and below are displayed in 0% space), and the right side is the highest voltage (this voltage and above are fully displayed at 100%)
For example: 10.5 135 means the lowest voltage is 10.5V and the highest voltage is 135V.
In this mode, the function of the down key is to turn left →, and the function of the upper key is to increase +
3. 4-mode low-voltage alarm function setting 4— — , press the key to confirm entry, display 00.0V, OFF
The alarm start switch on the right is OF/ON, and the left is the alarm voltage (when the voltage is lower than this value, it will alarm)
In this mode, the function of the lower key is to turn left →, and the function of the upper key is to increase +
4, 5 mode calibration voltage setting 5—— — , display =12V, (the numbers will flash) with 12V power supply,,
Press the up button once, then the right side will display ﹣﹣﹣ (three horizontal bars), and after about 1 second, OU will be displayed, which means the calibration is completed, then long press the up button to confirm the save, and return to the main page, so that the comparison Almost successful.
5, 6 mode temperature display settings 6 — —, . Press the up key to switch the ON/OFF temperature display. The temperature display can be turned off. Press and hold the up button again to confirm the return.
After setting, press the up button to switch the display of voltage and temperature
6, 7 mode high voltage alarm setting 7--,, press the key to confirm to enter, display 00.0V, OFF, this time the alarm and battery grid will display the battery grid will display full grid, (representing high voltage settings)
In this mode, the function of the down key is to go to the left →, and the function of the up key is to increase +
Fourth, the extreme working conditions:
1. Working temperature: -10～+70℃ 2. Working humidity: 10～80% (no condensation)
3. Working air pressure: 80～106kPa 4. Sunlight exposure: no direct exposure
2. Do not exceed the specified value of this product during the measurement process, so as not to cause damage to the product
