Description:

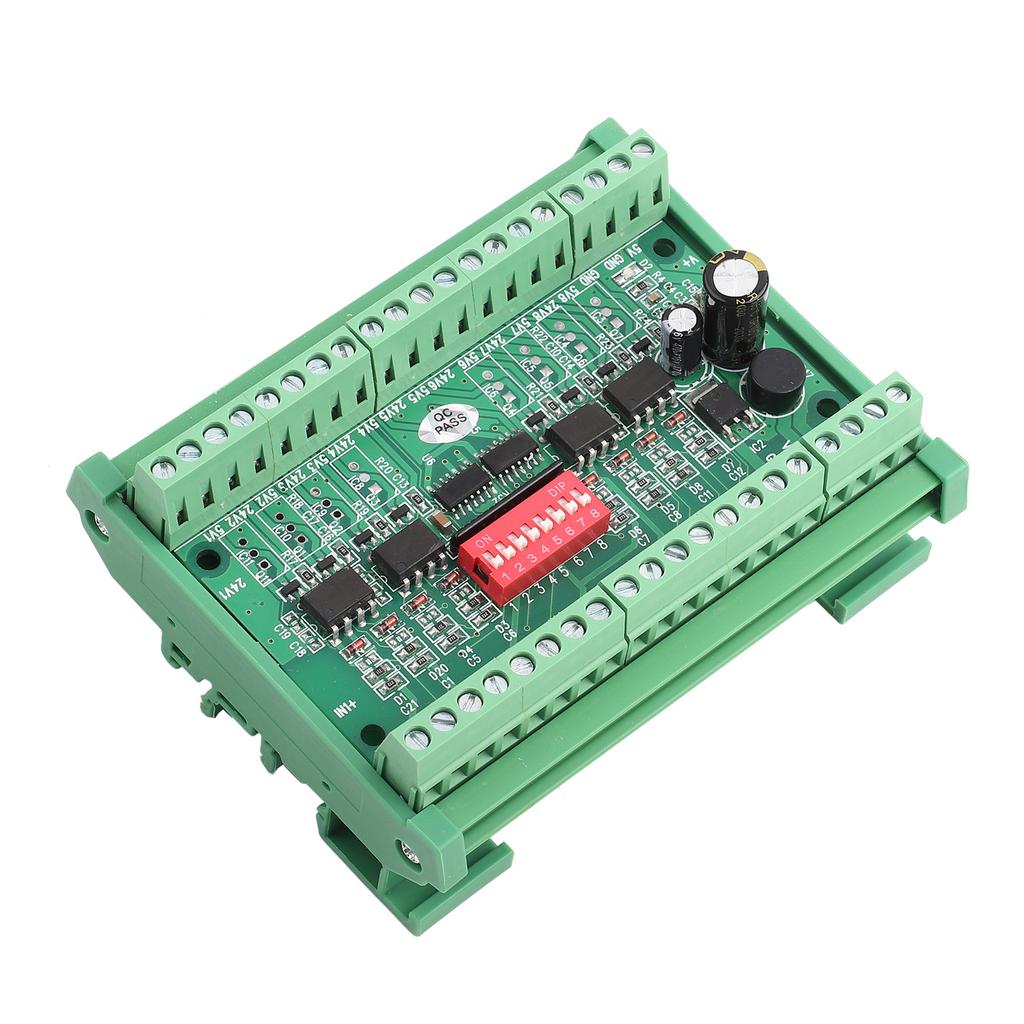

This
level converter is mainly used for PLC or MCU interface matching with
other circuits, external circuit signal level conversion circuit,or
other level conversion between control circuits.This module can convert
8channel signals at the same time, using isolation chip of 10MHZ
bandwidth, which can effectively guarantee speed and integrity of
signal.
Features:
The module can convert input 5V level signal to 24V level signal, or convert input 24V level signal to 5V level signal.
It
can also convert signal 5V to 5V, or 24V to 24V level, and isolate
input signal and output signal through optocoupler, which can improves
antiinterference ability of circuit.
Input level can be set by DIP switch, 24V level output is NPN OC output, output current is 100mA.
It has conversion and amplification circuit, good wave, strong driving ability.
Compatible with a commoncathode or commonanode input connection, matching European and Japanese PLC interface standards.
Compatible with ACDC input power supply interface, designed with power indicator light.
When
output is selected as 24V level, it is NPN OC output, with maximum 1A
load capacity.24Voutput is OC output (NPN collector open circuit
output), if you want to test output, it must add resistor, normally use a
10KR resistor.
When converting signal to 24V level, the power supply of input should be 24V.
When converting signal to 5V level, the power supply of input can be in between 7V35V.
You can use 4pcs M3 standoffs(not included) to install it.
Specifications:
Model: 85V24VD
Channel: 8channel
Input: NPN or PNP, 5V or 24V level squarewave signal
Output: NPN 5V or 24V squarewave signal
Size:Approx.
11 x 9 x 5cm4.3 x 3.5 x 2in
Weight: 170g(approx.)
Switch
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Input 5V Level
ON
ON
ON
ON
ON
ON
ON
ON
Input 24V Level
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Package Includes:
1 x Level Converter
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
