Feature:
1. The metal gear can withstand higher loads, which can ensure the normal operation of the servo.
2. High efficiency, low noise and low power consumption during operation, high performance.
3. It is made of high?quality plastic and semi?aluminum frame, and has undergone precise processing to ensure durability.
4. High precise and accuracy, reliable to use, durable, easy to install and disassemble.
5. There are 5 different servo arms in the package to meet your different needs.
Specification:

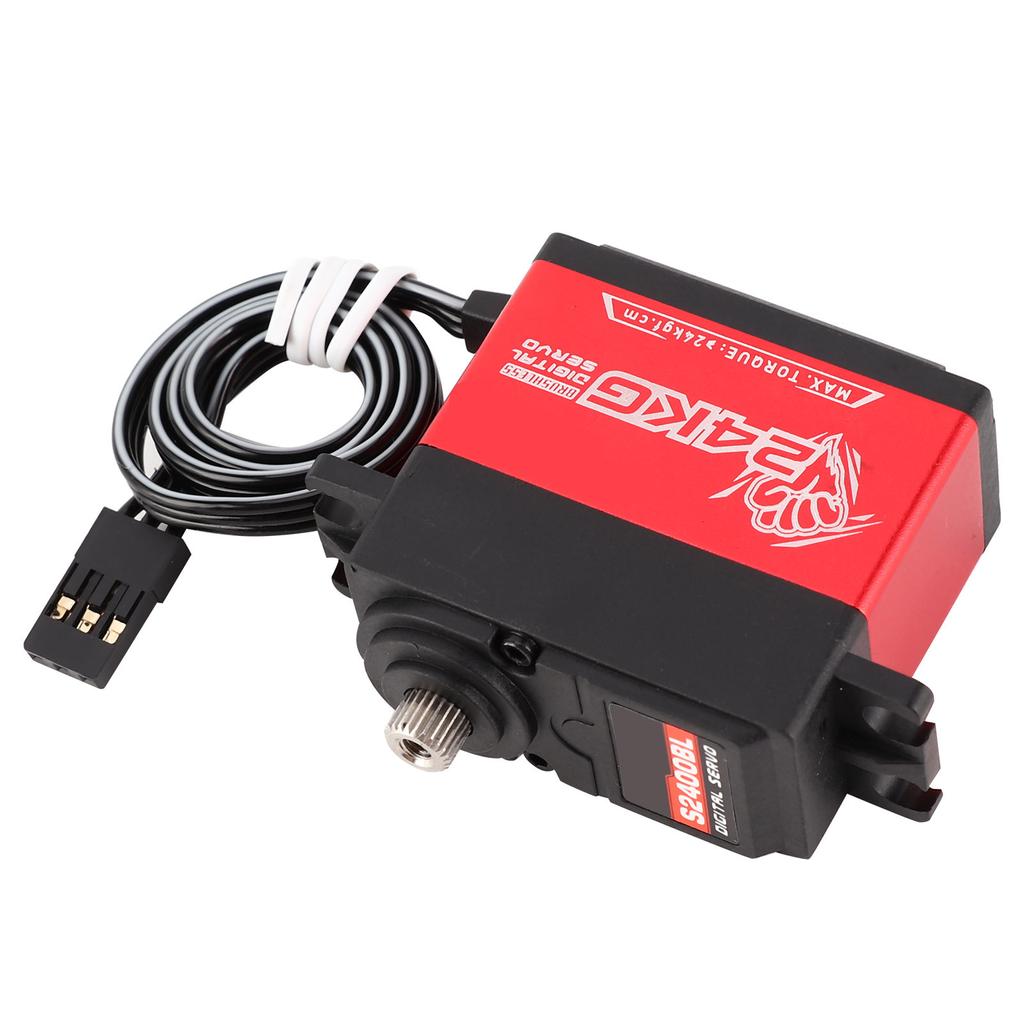

Item Type: 24KG ServoMaterial: Plastic + AluminumColor: Black RedSize: Approx. 40x38.6x20mm1.6x1.5x0.8inWeight: Approx. 85.0g3.0ozModel: S2400BL
LockedRotor Torque: more than 25.0kgf.cm at 7.4V
Working Voltage: 6.0~7.4V DC
NoLoad Speed: 0.12 seconds at 7.4V at 60 degrees
Operating Angle: 180 degrees +10 degrees (500~2500Microsecond)
Mechanical Limit: 210 degrees
Operating Angle: CCW (10002000Microsecond)
Applicable Motor Type: Brushless Motor
Fitment:Fit for 18 RC CarFit for Model BoatFit for Model Robot
Installation Notes:
1. Install the servo to the base first, without installing the servo arm or servo protection. Only fix the servo to frame. Then connect the servo to the receiver, Generally, the three lines for CH1ST port are divided into bottom line, VCC, signalPWN.
2. After the servo is fixed, turn on the remote control and turn on the ESC after setting it, and then the servo will stop at a fixed position
3. Without turning off the remote control and the servo, install the servo protection or the servo arm to the servo output gear.
Package List:
1 x 24KG Servo5 x Servo Arm5 x Screw8 x Accessory1 x Manual
Note:
1. There will be differences in the installation of different grams of servos, please actual installation shall prevail.2. The accessories provided by the servo of different grams will be different, please refer to the real object in the package.3. Manual measurement, please allow 1?3mm0.04?0.12in error, thank you.4. Due to the difference between different monitors, the picture may not reflect the actual color of the item.The metal gear can withstand higher loads, which can ensure the normal operation of the servo.
High efficiency, low noise and low power consumption during operation, high performance.
It is made of high?quality plastic and semi?aluminum frame, and has undergone precise processing to ensure durability.
High precise and accuracy, reliable to use, durable, easy to install and disassemble.
There are 5 different servo arms in the package to meet your different needs.
