Feature:
1. [Multipurpose] The whole circuit leakage detector adopts integrated circuit and digital circuit to complete the measurement of insulation resistance, AC voltage and other parameters.
2. [High Accuracy] Insulation resistance meter has complete functions, high accuracy, stable performance, comfortable and reliable operation, so you can use it with confidence.
3. [Automatic Alarm Function] With high definition backlit large screen, clear readings, easy to measure, with automatic alarm function, buzzer alarm when the measured insulation is less than 4M Ohm .
4. [Save Energy] The insulation resistance tester can automatically shut down, save energy and power, and automatically shut down after 10 minutes of no operation, which can maintain, test and verify various electrical equipment.
5. [Widely Application] Suitable for measuring the insulation resistance of electrical equipment and insulating materials such as motors, cables, switches, electrical appliances, etc.
Specification:

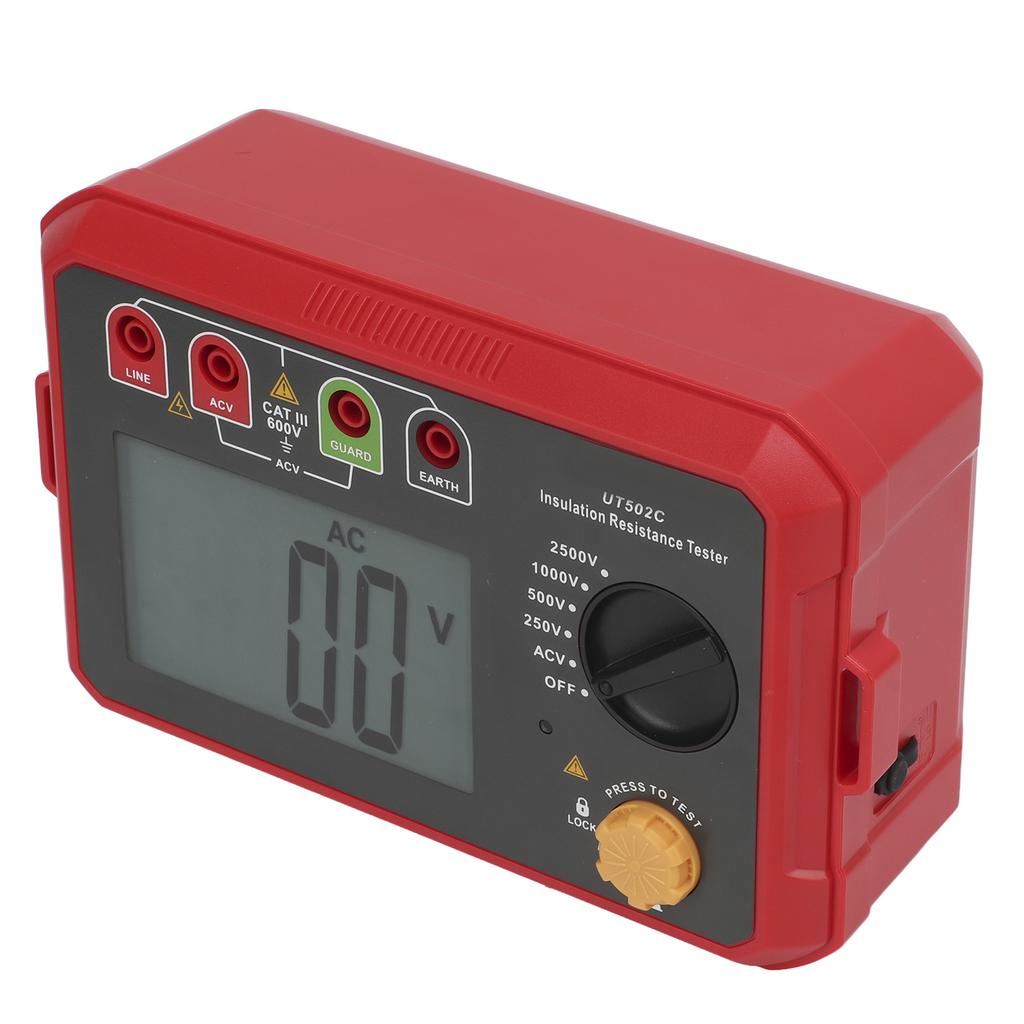

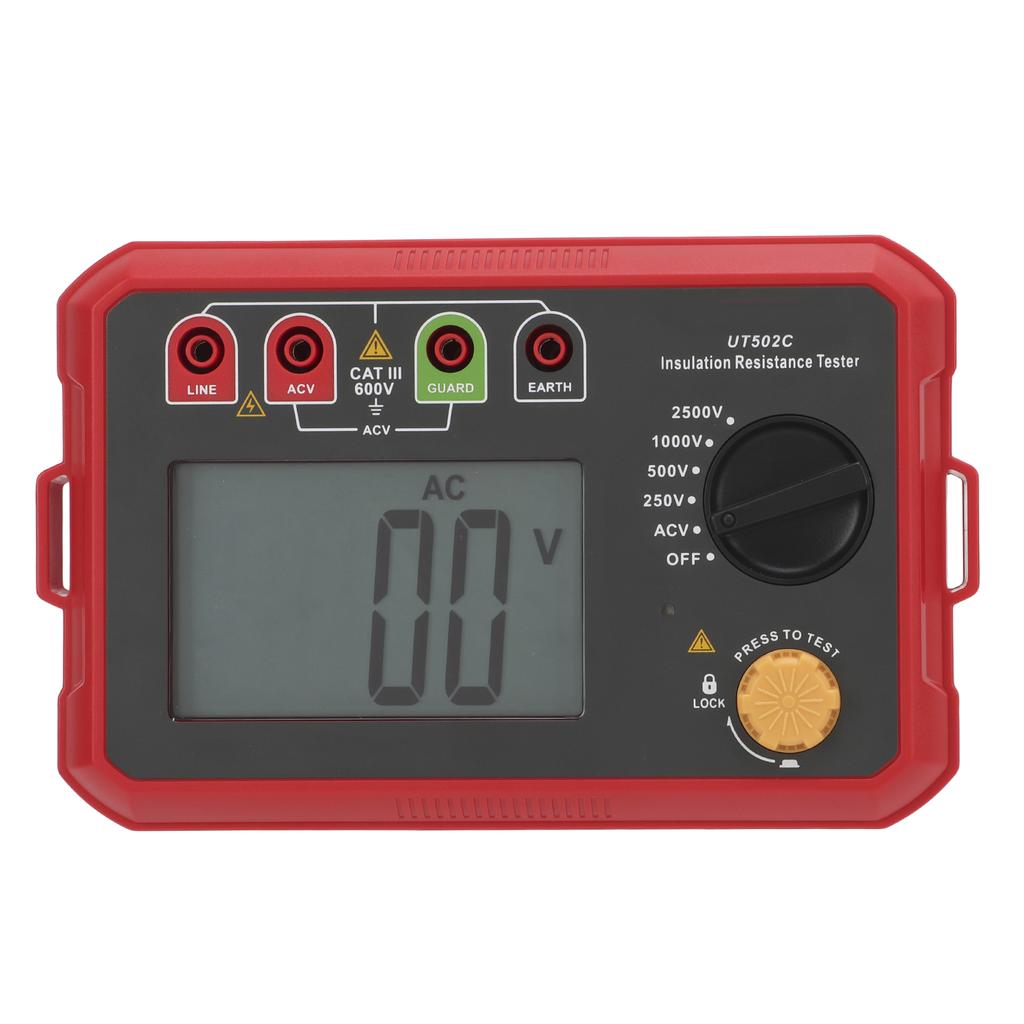

Item Type: Insulation Resistance Meter
Model: UT502C
Battery: 6 x 1.5V AA (Battery Not Included)
Material: ABS
Application: Suitable for insulation measurement in cable factories, substations, power stations, motor windings
Voltage Test Index: AC Voltage
Test Range: 30V~750V (50Hz60Hz)
Resolution: 1V
Accuracy: +(2percent +3)
Insulation Resistance Test Index:
Rated Voltage
250V
500V
1000V
2500V
Test Range
0.00M Ohm ~500M Ohm
0.00M Ohm ~2.00G Ohm
0.00M Ohm ~5.00G Ohm
0.00M Ohm ~20.0G Ohm
Open Circuit Voltage
DC 250V+10percent
DC 500V+10percent
DC 1000V+10percent
DC 2500V+10percent
Rated Test Current
1.0mA~1.1mA at 250k Ohm load
1.0mA~1.1mA at 500k Ohm load
1.0mA~1.1mA at 1M Ohm load
1.0mA~1.1mA at 2.5M Ohm load
Short Circuit Current
Less than 2.0mA
Accuracy Range
0.00M Ohm ~99.9M Ohm : +(3percent +5)
100M Ohm ~9.99G Ohm : (5percent +5) 10.0G Ohm ~20.0G Ohm : +(10percent +5)
.
Package List:
1 x Insulation Resistance Meter (Battery Not Included)2 x Test 2 x Clip1 x Lanyard1 x Manual1 x Portable Bag[Multipurpose] The whole circuit leakage detector adopts integrated circuit and digital circuit to complete the measurement of insulation resistance, AC voltage and other parameters.
[High Accuracy] Insulation resistance meter has complete functions, high accuracy, stable performance, comfortable and reliable operation, so you can use it with confidence.
[Automatic Alarm Function] With high definition backlit large screen, clear readings, easy to measure, with automatic alarm function, buzzer alarm when the measured insulation is less than 4M Ohm .
[Save Energy] The insulation resistance tester can automatically shut down, save energy and power, and automatically shut down after 10 minutes of no operation, which can maintain, test and verify various electrical equipment.
[Widely Application] Suitable for measuring the insulation resistance of electrical equipment and insulating materials such as motors, cables, switches, electrical appliances, etc.
