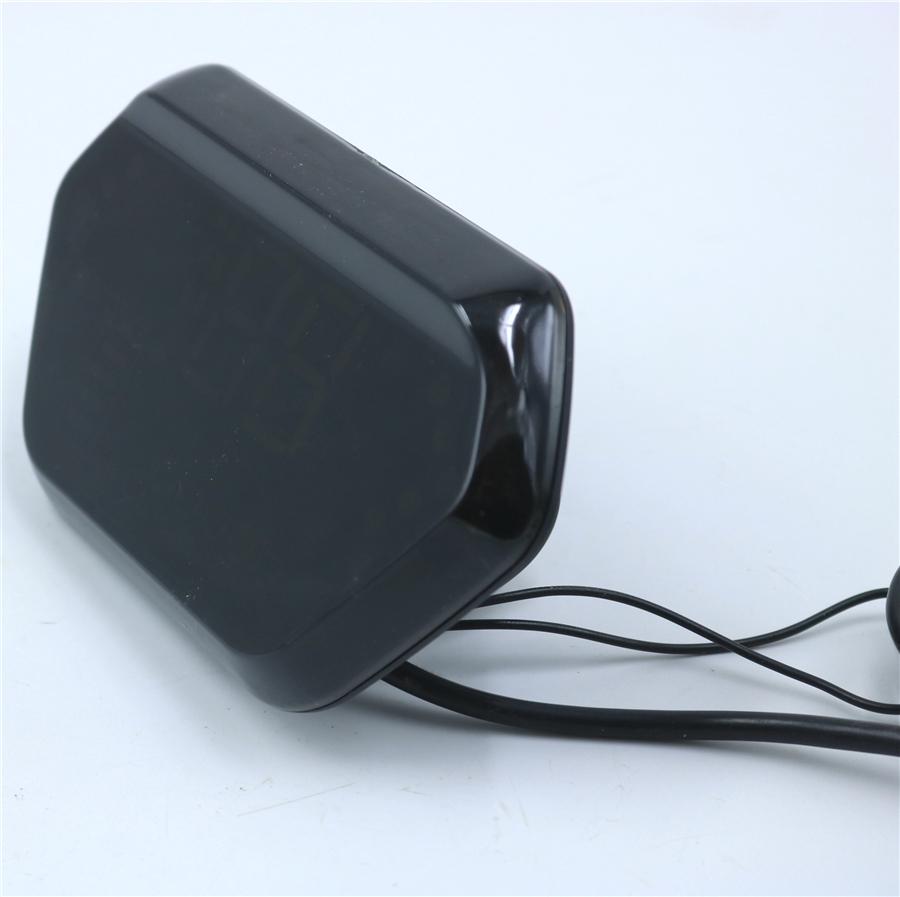

Fitment:Universal Fit For 36/48/60V Electric Bicycle
Its main function/it indicates:
frontlight,
left and right turning,(please inform in advance if you need,)
speed(defaut setting taking phase wire voltage signal, this model cannot take hall sensor wire signal,)
3 gears (, default setting it will not lighten. and the error code is not lightened,unless your controller read yxt signal,.)
odometer
POsitive and negative automatic identify.
warrenty one year/
battery level (indicate battery voltage , will not change )
The wiring way

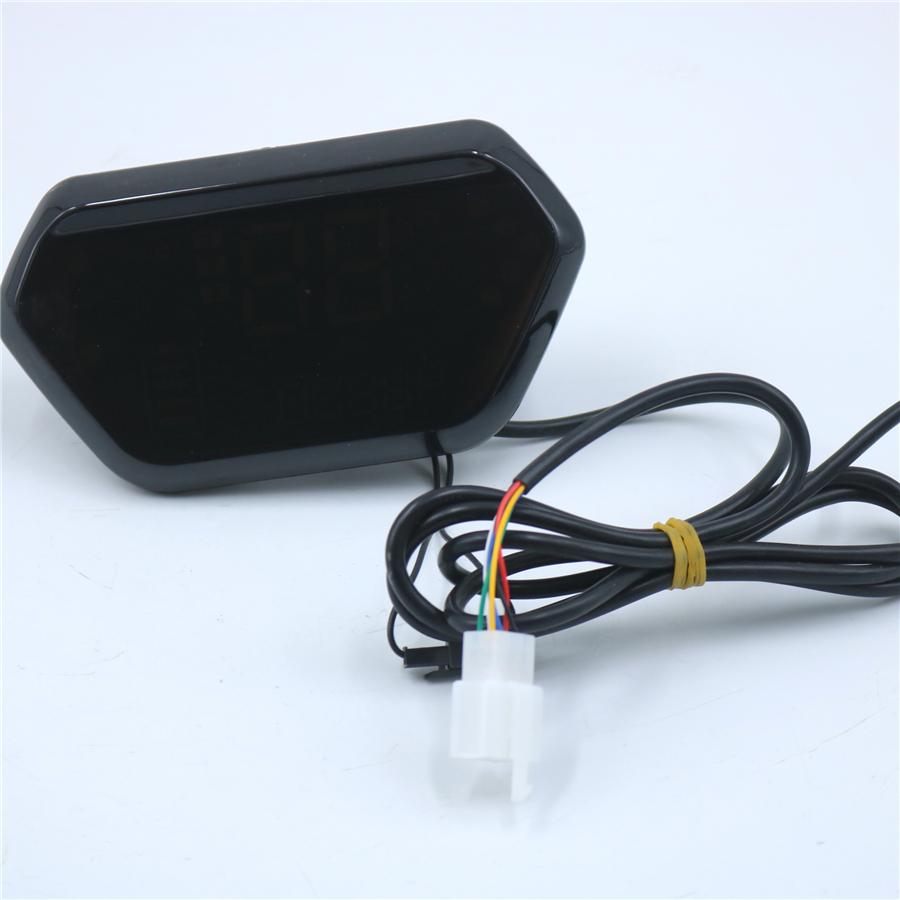

WIRING for a big white connector
RED-power POSITIVE
black-power negative
blue-frontlight
purple-speed , phase wire voltage speed testing.
orange -left turning signal
light blue-right turning signal
see this location and sequence. if yours are different can try to change by using a thin iron stick.
wiring
Speed
for this kind of display it has 4 ways to take signal --this depends on your controller program
1),. phase wir
